§ materials · No. 141

La₈O₂₄TeW₃

heavy oxide ceramic · thermal mass ceramic

La8O24Te1W3 is a heavy oxide ceramic suitable as thermal mass ceramic. Color: neutral. Fired at 1250°C from 2 precursors (La2O3, WO3). Workshop batch: 200g at €31.60. Compressive strength ~100 MPa; estimated 0.94 kg CO₂/kg (+326% vs clay brick). Notable: electrochromic tungstate. Confidence: medium.

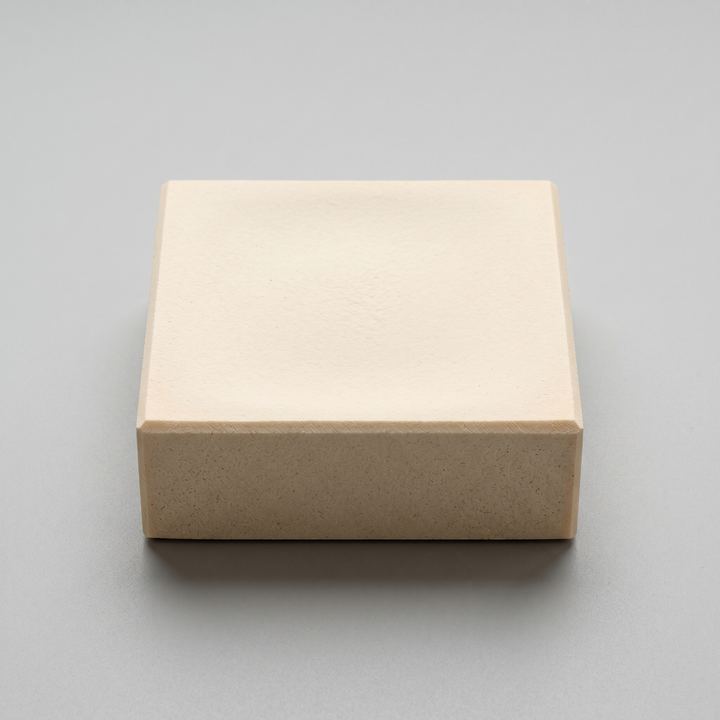

Rendered sample plate of La₈O₂₄TeW₃
La₈O₂₄TeW₃ · rendered sample plate, 70x70x31 mm · Generative Matter V3 · not a photograph
forms at
1250 °C · high-fire
replaces
clay brick
CO₂
326% higher than clay brick (0.94 vs 0.22 kg CO₂/kg; 4.3× higher)
energy
108% higher than clay brick (6.25 vs 3.00 MJ/kg; 2.1× higher)
compressive
100 MPa
density
6.54 g/cm³
crystal
triclinic
band gap
3.34 eV
cost
€158.00/kg · €31.60 / 200 g batch
confidence
medium (synthesis route)
potential
0.35 · env 0.00 · novel 1.00 · struct 0.20 · lineage 0.50 · supply 0.00
flags
electrochromic tungstate: A voltage-switchable optical chemistry. In thin-film form a small DC signal shifts transmission from clear to tinted blue, opening the door to dimmable glazing and responsive partitions that do not need mechanical shading.

Architectural potential

A lanthanum-tungstate heavy oxide in the thermal-mass register, absorbing daytime solar gain and releasing it slowly after dark. At 100 MPa and 6.54 g/cm³ it is serious mass in a small volume, and the electrochromic tungstate chemistry adds a secondary switch: the tungsten sub-matrix shifts tint under a small DC bias, giving the piece a second life as a dimmable thermal-storage face. Natural placements are south-facing trombe-wall inserts in passive-solar hybrids, hypocaust-style floor patches under glazed loggias, radiant-heat storage panels along interior masonry walls, and switchable thermal-face tiles along atrium perimeters. The architectural argument is temporal: the slab shifts the thermal day later into the evening, smoothing the cooling load. But the embodied-CO₂ penalty is prohibitive for any volume work — three hundred and twenty-six per cent against clay brick — so specification is strictly signature-patch scale. Natural building types are retrofit passive-solar residences, winter-garden interiors, and small ritual rooms where the shifting thermal register is wanted as an architectural effect. The caveat is cost and supply chain: €31.60 per 200 g, supply-chain score of zero for the lanthanum-tungsten pair, and a 500 g workshop ceiling keeping pieces firmly in the tile register rather than wall-element.

Material character

The 70×70×31 mm slab reads a neutral warm grey at room temperature, the body sitting between sintered porcelain and a dense industrial ceramic in surface feel. At 6.54 g/cm³ the piece is strikingly heavy for its tile-scale footprint — a firm two-hand lift, closer in register to a cast-iron paperweight than to a fired tile. Surface fires to a smooth sintered matte; edges cold-cut with the diamond-saw dust along the kerf. Against an ordinary clay-brick sibling the La-W body reads almost twice the weight at the same volume, and the room-temperature colour carries a faint tungsten-blue undertone that deepens under the electrochromic bias.

recipe

Recipe

200 g batch · peak 1250 °C
elementprecursorformulamasssafety
Lalanthanum oxideLa2O365.2 gmoderate
Wtungsten trioxide (yellow)WO334.8 gmoderate
schedule
  • 1Ramp
  • 2Hold
  • 3Ramp
  • 4Ramp
  • 5Hold
  • 6Ramp
  • 7Ramp
watch for

Electrochromic — color switches under applied voltage (thin-film chemistry)

Recipes are synthesis protocols for trained workshop use, with the full procedure, curves, and safety notes in the Recipe Atlas. Firing schedules are best estimates: the first firing of any composition is an experiment, not a production run.
