§ materials · No. 173

B₆La₃O₃₀Pr₃Si₆

borosilicate glass · structural translucent advanced

B6La3O30Pr3Si6 is a borosilicate glass suitable as structural translucent advanced. Color: neutral. Fired at 1300°C from 4 precursors (Pr6O11, La2O3, SiO2). Workshop batch: 200g at €30.14. Compressive strength ~500 MPa; estimated 1.01 kg CO₂/kg (+18% vs float glass). Notable: uv luminescent. Confidence: medium.

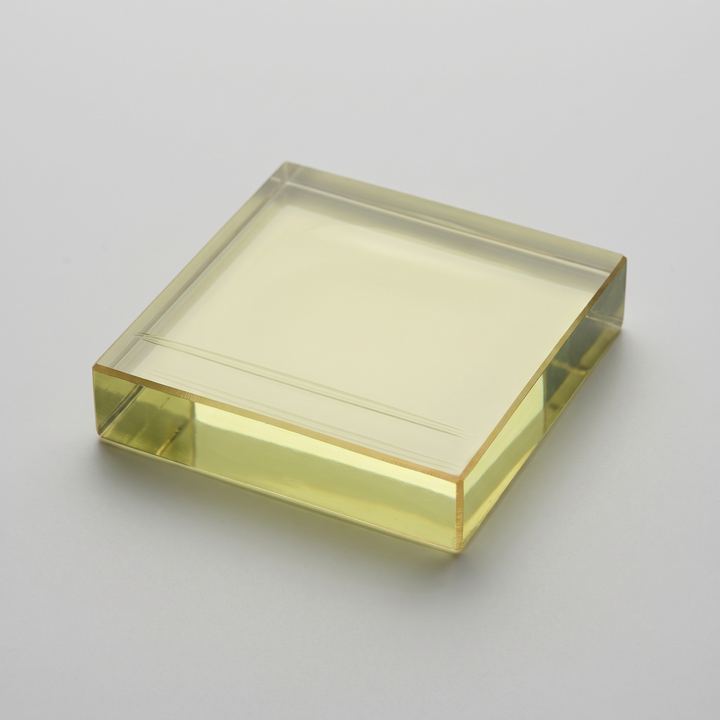

Rendered sample plate of B₆La₃O₃₀Pr₃Si₆
B₆La₃O₃₀Pr₃Si₆ · rendered sample plate, 85x85x30 mm · Generative Matter V3 · not a photograph
forms at
1300 °C · extreme-fire
replaces
float glass
CO₂
18% higher than float glass (1.01 vs 0.86 kg CO₂/kg; 1.2× higher)
energy
55.0% lower than float glass (6.75 vs 15.00 MJ/kg)
compressive
500 MPa
density
4.63 g/cm³
crystal
triclinic
band gap
4.19 eV
cost
€150.70/kg · €30.14 / 200 g batch
confidence
medium (synthesis route)
potential
0.57 · env 0.69 · novel 0.50 · struct 1.00 · lineage 0.50 · supply 0.10
flags
uv luminescent: Converts invisible ultraviolet into visible light. Signage panels, low-energy wayfinding tiles, emergency markings that draw their illumination from daylight rather than mains power.

Architectural potential

A lanthanum-praseodymium borosilicate fired at 1300 °C to 500 MPa at 4.63 g/cm³, carrying a UV-luminescent chemistry that emits visible light under near-ultraviolet excitation. Five hundred megapascals of compression and the dense borosilicate matrix lift this out of the sheet-glass register entirely into the inhabitable translucent solid zone. Natural placements are monolithic light-admitting columns in public interiors — gallery piers, bath-house screens, crematoria thresholds, museum plinths — where the pier both carries load through daylight and glows under dedicated 365 nm excitation during evening ritual hours. Illuminated stair treads with underside UV excitation read neutral through the top face by day and shift to the soft chartreuse of praseodymium-lanthanum emission by night. Against float glass the embodied CO₂ is eighteen per cent higher but the energy overhead is fifty-five per cent lower, so the trade is thermal rather than carbonaceous. The caveat is rarity: lanthanum and praseodymium availability is small, the supply-chain score sits at 0.14, 200 g workshop batches to a 500 g ceiling, and €30 per batch. Specification sits firmly in the signature-element register — the one pier in the entry hall, the threshold stone at the portal — rather than any bulk glazing or facade use.

Material character

The slab reads neutral through the 30 mm top face — clear clean borosilicate with only the faintest rare-earth undertone in daylight, markedly more transparent than the gadolinium-praseodymium exemplar in this family. Sighted along the 85 mm long edge the body deepens to a pale straw-gold. Cold-cut edges carry the expected lapidary bloom; the top face sits under a low convex crown with two thin anneal striae close to one short edge. At 4.63 g/cm³ and 85×85×30 mm the slab lifts two-handed but not heavily. Under 365 nm UV the body glows a soft pale-chartreuse — a clearer, cooler emission than the praseodymium-gadolinium sibling.

recipe

Recipe

200 g batch · peak 1300 °C
elementprecursorformulamasssafety
Bboron oxide (or borax Na2B4O7)B2O313.31 gsafe
Lalanthanum oxideLa2O331.15 gmoderate
Prpraseodymium oxidePr6O1132.56 gmoderate
Siquartz flour / silicaSiO222.98 gsafe
schedule
  • 1Ramp
  • 2Hold
  • 3Ramp
  • 4Hold
  • 5Ramp
  • 6Hold
watch for

UV-luminescent — emits visible light under 365 nm UV

Recipes are synthesis protocols for trained workshop use, with the full procedure, curves, and safety notes in the Recipe Atlas. Firing schedules are best estimates: the first firing of any composition is an experiment, not a production run.
