C₄Fe₃MnSi₈V₁₂

Architectural potential

A vanadium-heavy sintered ferrous alloy whose architectural role is hardware and connector-work — brackets, column-foot plates, façade clips, stair-tread pivots, and furniture joints. The shape-memory FeMnSi chemistry is the interesting addition: the alloy deforms under load or thermal cue and snaps back to a remembered geometry when warmed, which in building terms means seismic-damping brackets in bridge abutments, self-tensioning fasteners in timber-steel connectors, deployable canopy hinges, and hold-down plates that return themselves to spec after minor overload. At 250 MPa of compression and 5.85 g/cm³ the pieces are structural-steel adjacent but lighter and less ductile, so the register is connector-scale rather than primary-beam: the place where a cast or welded steel node would otherwise live. A fifty-three-per-cent CO₂ cut against structural steel and seventy-four-per-cent energy cut make the environmental argument legible; the low per-part cost (€1.36 per 200 g) puts it realistically into series production for façade hardware. The caveat is scale ceiling: 500 g per workshop run limits the alloy to brackets and clip-scale fittings rather than monolithic nodes, and the shape-memory response needs calibration per part — not plug-in hardware but tuned hardware, closer to a cast bronze bell than to a machine-shop bolt.

Material character

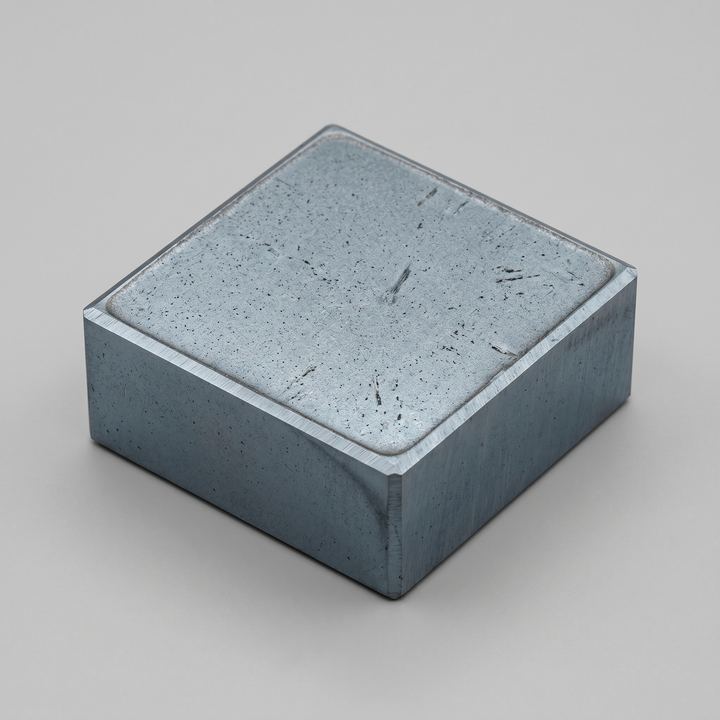

The slab reads a cool grey-blue, close in hand-feel to hardened tool steel but with a distinctly matte sintered grain rather than a polished roll finish. At 70×70×35 mm and 5.85 g/cm³ it sits heavy, firmly two-handed despite the compact footprint. Surface carries the characteristic powder-sinter texture: fine equiaxed pitting visible under raking light, a cooler body tone than cast steel and without the rolled mill-scale. Edges cold-cut, the diamond-saw kerf leaving a fine cream-white residue. Against a cast steel sibling of equivalent volume the sintered body rings duller and denser, and the vanadium content gives a faintly cooler cast to the overall colour.
