§ materials · No. 095

Co₂K₄O₁₂Si₄

alkali silicate glass · structural translucent glass

Co2K4O12Si4 is a alkali silicate glass suitable as structural translucent glass. Color: blue. Fired at 1150°C from 4 precursors (K2CO3, SiO2, CoO). Workshop batch: 400g at €23.38. Compressive strength ~500 MPa; estimated 0.84 kg CO₂/kg (-2% vs float glass). Notable: no special functions flagged. Confidence: high.

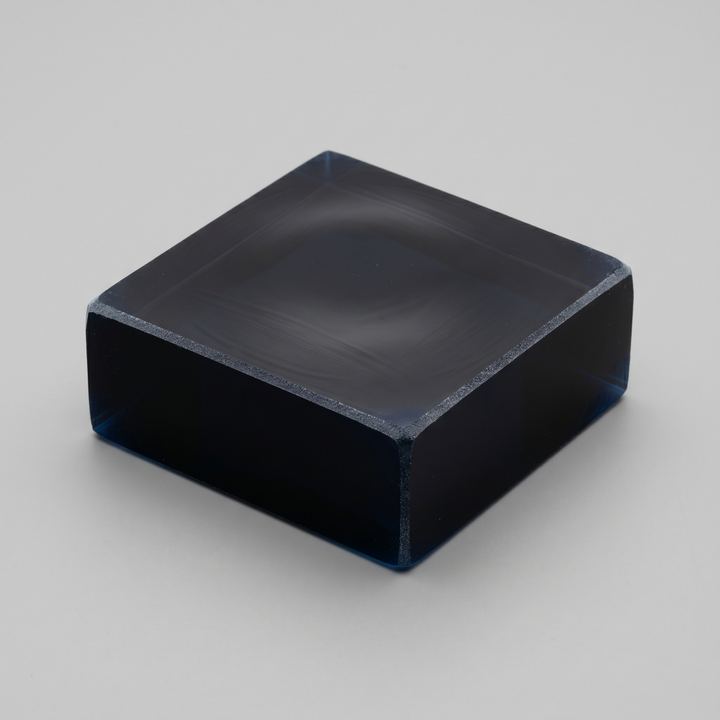

Rendered sample plate of Co₂K₄O₁₂Si₄
Co₂K₄O₁₂Si₄ · rendered sample plate, 85x85x47 mm · Generative Matter V3 · not a photograph
forms at
1150 °C · high-fire
replaces
float glass
CO₂
1.9% lower than float glass (0.84 vs 0.86 kg CO₂/kg)
energy
62.5% lower than float glass (5.62 vs 15.00 MJ/kg)
compressive
500 MPa
density
2.93 g/cm³
crystal
orthorhombic
band gap
3.22 eV
cost
€58.45/kg · €23.38 / 400 g batch
confidence
high (synthesis route)
potential
0.64 · env 0.78 · novel 0.00 · struct 1.00 · lineage 0.70 · supply 1.00

Architectural potential

A cobalt-blue alkali-silicate glass fired at 1150 °C, carrying the family's 500 MPa of compression and a clean transparent body without functional flags beyond colour and structure. The architectural reach is the full load-bearing translucent register: pressed-glass stair treads, transparent partitions in hospital and laboratory interiors, blue glazing mullions for bathing and liturgical architecture, and monolithic light-admitting piers in public interiors where the colour is the design idea. Against float glass the CO₂ sits two per cent lower and the energy sixty-two per cent lower, so the trade-off is favourable on the fire but modest on the carbon; the real argument is that a blue structural element removes a separate glazing layer from an assembly that would otherwise combine steel and tinted sheet. Natural placements are glazed floor panels in entry atria, pressed-glass balustrade units in gallery stairs, and blue column-like piers in meditation and memorial interiors. The batch size at 5 kg workshop ceiling makes staircase-scale runs feasible. The caveat is cost: at €23.38 per 400 g batch the cobalt precursor drives the price high, and the colour is not forgiving of mismatched batches — a pier run needs its cobalt traced to a single supplier lot.

Material character

The slab reads a deep saturated cobalt-blue, the absorption edge near 3.22 eV letting the body carry clear transmission within the blue band rather than a muddy tint. Held to daylight the 47 mm depth deepens the view toward indigo at the long edge and cornflower across the short face. At 2.93 g/cm³ in an 85×85×47 mm format the piece takes a two-handed lift, slightly lighter in hand than the iron-amber sibling of the same dimensions. Cold-cut edges carry the lapidary bloom; the pressed top face sits under a low crown with faint anneal striae. A measurably purer colour than the manganese purple-brown cousin.

recipe

Recipe

400 g batch · peak 1150 °C
elementprecursorformulamasssafety
Cocobalt(II) oxideCoO22.48 gmoderate
Kpotassium carbonate / potashK2CO341.47 gsafe
Siquartz flour / silicaSiO236.05 gsafe
schedule
  • 1Ramp
  • 2Hold
  • 3Ramp
  • 4Hold
  • 5Ramp
  • 6Hold

Recipes are synthesis protocols for trained workshop use, with the full procedure, curves, and safety notes in the Recipe Atlas. Firing schedules are best estimates: the first firing of any composition is an experiment, not a production run.
