FeMn₅Nb₄Si₂

Architectural potential

A powder-pressed shape-memory alloy sintered rather than cast, this material belongs in the hardware and node register of a building — brackets, façade clips, furniture joints, structural connector nodes — where one piece has to hold geometry but also give way and recover under load. The iron-manganese-silicon base with niobium stabilisation deforms on cue and snaps back to its remembered shape when warmed, which opens the door to seismic-damping brackets that absorb a storey drift and reset themselves, deployable canopy hinges, and self-tensioning fasteners for timber-to-timber joints. Against structural steel it cuts embodied CO₂ by fifty-three per cent and firing energy by three-quarters, so the environmental case is already serious at the fitting scale; the five-hundred-gram workshop ceiling means it lives at hardware-batch scale, not at I-beam scale. Natural placements are the small metal pieces that carry disproportionate structural intelligence: earthquake-region hold-downs, retractable canopy articulations over courtyards, reconfigurable exhibition-partition clips. The caveat is a thin one: a 250 MPa sintered body takes machining cleanly but is not a cast-steel replacement for a primary moment connection, and the safety register on the manganese dust during sintering demands workshop ventilation rather than the open kiln-yard practice of a ceramic studio.

Material character

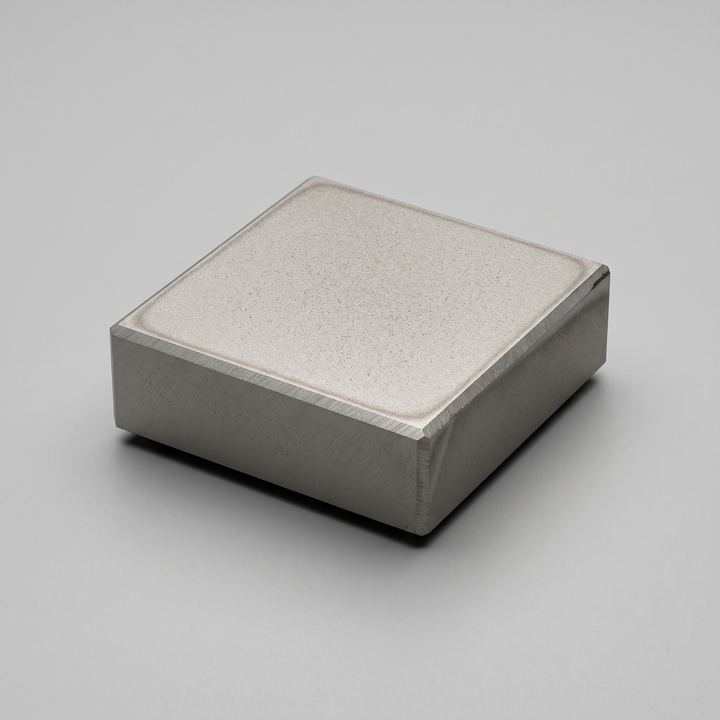

The 70×70×26 mm slab sits neutral grey with a faint blue-graphite cast typical of sintered FeMnSi — closer to graphite pencil than to polished steel. Surface reads as a sintered matte grain, mid-grit, the sub-millimetre porosity visible at raking light as a fine even texture. Edges are die-pressed with a slight crown along the long sides and a cleanly broken arris where the press tool parted. At 7.75 g/cm³ the full slab lifts two-handed — a distinct weight step up from an aluminium hardware piece of the same footprint, but noticeably lighter in hand than a cast-steel node of equivalent volume. Rings duller than cast steel when tapped, a signature of the sintered pore network.
